Pulsotronic波尔索

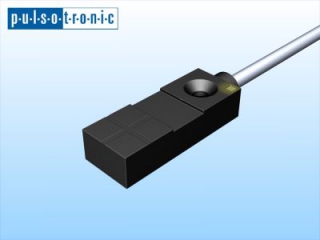

SJ2-Q10KN27-DPS
型 号：SJ2-Q10KN27-DPS
品 牌：Pulsotronic波尔索
货 号：
系 列：传感器
电 话：0591-87953909
传 真：0591-87959825
SJ2-Q10KN27-DPS产品详细信息：
| Product Description | inductive sensor DC |
| Name | SJ2-Q10KN27-DPS |
| Number | 08313021010 |
| Switching distance | 2 mm |
| Mounting | Non shielded |
| Switch type | N.O. |
| Signal Type | DC PNP |
| Connection | |
| Dimension | 22 mm x 10 mm |
| Technical Spec | |
| Operating voltage | 10 - 30 V DC |
| Max. ripple | ≤ ≤10 % |
| Voltage drop | ≤ 1,0 V |
| Max. load current | 100 mA |
| No load current | ≤ 10 mA |
| Leakage current | ≤ 10 µA |
| Switching frequency | 250 Hz |
| Switching hysterese | ≤ 15 % |
| Operating temperature | von -25 ° C bis 70 ° C |
| Temperature drift | ≤ 10 % |
| Repeat accuracy | ≤ 3 % |
| Operating state | No |
| Swiching state | Yes |
| Digital output | Yes |
| short-circuit proof | Yes |
| overload protection | Yes |
| reverse voltage protection | Yes |
| Protection Category | IP67 |
| EMV - Level | DIN EN 60947-5-2:2008 |
| termination | 2m PVC 3x0,15mm² |
| Housing material: | Polycarbonate |
